HIGH PERFORMANCE FIBERS

Made with SAHM Winding Technology.

Firefighter at work - wearing fireresistant clothes made from high performance fibers
High Performance Fiber applications

Solutions for High Performance Fibers (HPF)

High performance fibers are used in the manufacture of sophisticated products with high safety relevance. Their outstanding heat and flame resistance, as well as their high chemical resistance, makes them perfect for fire and safety apparel. Bulletproof vests, helmets and various automotive components are also made with high performance fibers.

"Made with SAHM Winding Technology“ is our promise of quality. Optimally wound material is an important prerequisite for highest quality material.





TWINSTAR II 360XE
Automatic Precision Cross Winder
Winding head of an automatic Precision Cross Winder, type TWINSTAR II 360Xe HPF

TWINSTAR II 360XE

Automatic Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
190, 200, 250, 260 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
TWINSTAR II 360XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Highest Performance with minimum space requirements
    • Zero production waste - no downtime during bobbin change-over
    • Metered yarn length
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Adjustable yarn reserve with minimum yarn tail at bobbin change
    • Designed for economical use of standard cores
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    190, 200, 250, 260 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    1-, 2- or 3-tier
    Tube inside diameter
    82.55 or 94 mm*
    Tube length
    216, 230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Convenient bobbin handling via optimum parking position of the full bobbin
    • Electronically controlled winding ratio
    • Automatic bobbin change-over on reaching one of the following criteria: yarn length, winding time, package weight, package diameter, periodic cycle or external signal
    • Pneumatic mandrel with bobbin push-off device
    • Alarm management (yarn break, package diameter)
  • Options
    • Automatic suction device
    • Yarn cutter
    • Pull roll (godet) per winding head in connection with preceeding processes possible
    • Online yarn diameter monitoring
    • Interface to DCS (Distributed Control System)
    • Special coating of yarn touching elements

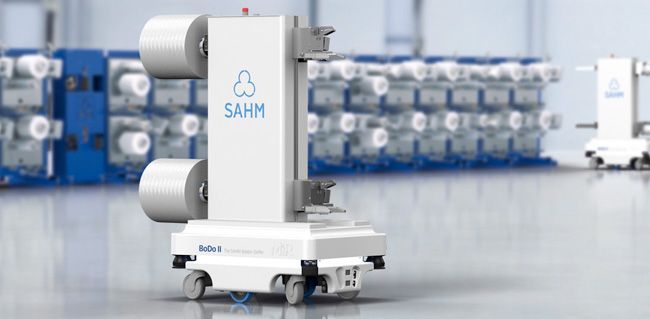

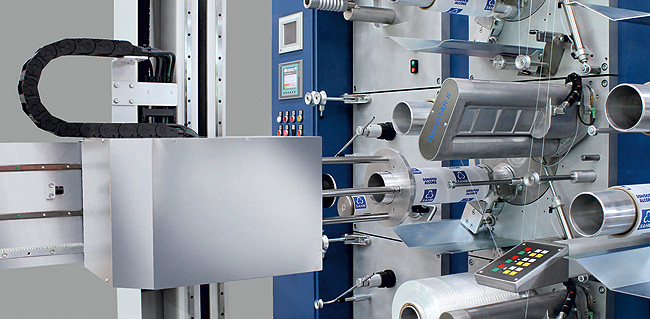

    • Adaptable to an automatic bobbin handling system
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
VideoVideo

This video is embedded from Vimeo.com. By playing the video, personal data can be transmitted to a third party. By clicking on the play button, you consent to the integration of content from the vimeo.com platform.
Fore more Information see our privacy policy.

TWINSTAR II 380XE
Automatic Precision Cross Winder
Winding head of an automatic Precision Cross Winder, type TWINSTAR II 380XE HPF

TWINSTAR II 380XE

Automatic Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 1500 m/min
Traverse length
190, 200, 250, 260 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
TWINSTAR II 380XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Highest Performance with minimum space requirements
    • Zero production waste - no downtime during bobbin change-over
    • Metered yarn length
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Adjustable yarn reserve with minimum yarn tail at bobbin change
    • Designed for economical use of standard cores
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 1500 m/min
    Traverse length
    190, 200, 250, 260 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    1-, 2- or 3-tier
    Tube inside diameter
    82.55 or 94 mm*
    Tube length
    216, 230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Convenient bobbin handling via optimum parking position of the full bobbin
    • Electronically controlled winding ratio
    • Automatic bobbin change-over on reaching one of the following criteria: yarn length, winding time, package weight, package diameter, periodic cycle or external signal
    • Pneumatic mandrel with bobbin push-off device
    • Alarm management (yarn break, package diameter)
  • Options
    • Automatic yarn suction device
    • Yarn cutter
    • Pull roll (godet) per winding head in connection with preceeding processes possible
    • Online yarn diameter monitoring
    • Interface to DCS (Distributed Control System)
    • Special coating of yarn touching elements
    • Adaptable to an automatic bobbin handling system
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
VideoVideo

This video is embedded from Vimeo.com. By playing the video, personal data can be transmitted to a third party. By clicking on the play button, you consent to the integration of content from the vimeo.com platform.
Fore more Information see our privacy policy.

TWINSTAR II 362XE
Automatic Precision Cross Winder for rewinding, assembly winding and take-up
Automatic Precision Cross Winder for rewinding, assembly winding and take-up, type TWINSTAR II 362XE HPF

TWINSTAR II 362XE

Automatic Precision Cross Winder for rewinding, assembly winding and take-up
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
190, 200, 250, 260 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
TWINSTAR II 362XE
  • Applications
    • Winding of high performance fibers, multifilaments, coated or twisted yarns with a delivery unit (godet roll)
  • Advantages
    • Highest performance with minimum space requirements
    • Zero production waste - no downtime during bobbin change-over
    • Metered yarn length
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Adjustable yarn reserve with minimum yarn tail at bobbin change
    • Designed for economical use of standard cores
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    190, 200, 250, 260 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    76.2; 82.55 or 94 mm*
    Tube length
    216, 230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Delivery unit for each winding position with synchronized frequency inverter drive
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Convenient bobbin handling via optimum parking position of the full bobbin
    • Automatic bobbin change-over on reaching one of the following criteria: yarn length, winding time, package weight, package diameter, periodic cycle or signal
    • Pneumatic mandrel with bobbin push-off device
    • Alarm management (yarn break, package diameter)
  • Options
    • Automatic yarn suction device
    • Yarn cutter
    • Online yarn diameter monitoring
    • Interface to DCS (Distributed Control System)
    • Special coating of yarn touching elements
  • Winding of high performance fibers, multifilaments, coated or twisted yarns with a delivery unit (godet roll)
Brochure
Gallery
TWINSTAR II 382XE
Automatic Precision Cross Winder for rewinding, assembly winding and take-up
Winding head of an automatic Precision Cross Winder for rewinding, assembly winding and take-up, type TWINSTAR II 382XE HPF

TWINSTAR II 382XE

Automatic Precision Cross Winder for rewinding, assembly winding and take-up
Titer
150 to 20000 dtex*
Winding speed
Max. 1500 m/min
Traverse length
190, 200, 250, 260 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
TWINSTAR II 382XE
  • Applications
    • Winding of high performance fibers, multifilaments, coated or twisted yarns with a delivery unit (godet roll)
  • Advantages
    • Highest performance with minimum space requirements
    • Zero production waste - no downtime during bobbin change-over
    • Metered yarn length
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Adjustable yarn reserve with minimum yarn tail at bobbin change
    • Designed for economical use of standard cores
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 1500 m/min
    Traverse length
    190, 200, 250, 260 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    76.2; 82.55 or 94 mm*
    Tube length
    216, 230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Delivery unit for each winding position with synchronized frequency inverter drive
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Convenient bobbin handling via optimum parking position of the full bobbin
    • Automatic bobbin change-over on reaching one of the following criteria: yarn length, winding time, package weight, package diameter, periodic cycle or signal
    • Pneumatic mandrel with bobbin push-off device
    • Alarm management (yarn break, package diameter)
  • Options
    • Automatic yarn suction device
    • Yarn cutter
    • Online yarn diameter monitoring
    • Interface to DCS (Distributed Control System)
    • Special coating of yarn touching elements
  • Winding of high performance fibers, multifilaments, coated or twisted yarns with a delivery unit (godet roll)
Brochure
Gallery
TWINSTAR II 380XE HS
Automatic Precision Cross Winder, direct spinning
Winding head of an Automatic Precision Cross Winder for direct spinning, type TWINSTAR II 380XE HS

TWINSTAR II 380XE HS

Automatic Precision Cross Winder, direct spinning
Titer
150 to 20000 dtex*
Winding speed
Max. 2500 m/min
Traverse length
200, 250 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
TWINSTAR II 380XE HS
  • Applications
    • Winding of technicals yarns
  • Advantages
    • Winding speed up to 2500 m/min.
    • Low power and compressed air consumption
    • Modular and compact winder design for minimized installation space - particularly suitable for replacement of 1- or 2-cop winders for direct spinning
    • Automatic bobbin changeover without suction device
      - no waste: 99,9 % changeover reliability
    • Option: Random Winding
    • Gentle yarn feeding with few contact points
    • Metered yarn length
    • Minimum maintenance expenditures
    • Quick and efficient product changes by electronic data input of all winding parameters
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 2500 m/min
    Traverse length
    200, 250 or 300 mm*
    Drive
    Frequency-controlled
    Tube inside diameter
    73; 76,2; 82,55 or 94 mm*
    Tube length
    216, 230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    Package weight
    20 kg
    *others on request.
    Combination of all maximum values is not possible
  • Winding of technicals yarns
Brochure
Gallery
two60
Precision Cross Winder

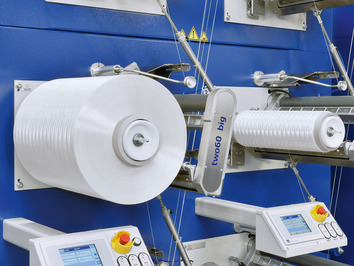

Winding head of a SAHM Precision Cross Winder, type two60 big HPF

two60

Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
200, 250 or 300 mm*
*others on request.
Combination of all maximum values is not possible
More
two60
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Electronically controlled winding ratio
    • Quick and efficient product changes by electronic input of all winding parameters
    • Compact modular design with dual inverter technology
    • Yarn entrance with minimum contact points
    • Alarm management (yarn break, package diameter)
    • Meter counter/doffing signal
    • Highest flexibility and wide range of applications
    • Minimum maintenance expenditures
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    200, 250 or 300 mm*
    Drive
    Frequency-controlled
    Frame
    Up to 4 tiers
    Tube inside diameter
    82.55 or 94 mm*
    Tube length
    230, 290 or 330 mm*
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
two60 big
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type two60 big HPF

two60 big

Precision Cross Winder
Titer
150 to 20000 dtex*
Winding speed
Max. 800 m/min
Traverse length
300, 400, 450 or 500 mm*
*others on request.
Combination of all maximum values is not possible
More
two60 big
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Minimum maintenance expenditures
    • Quick and efficient product changes by electronic input of all winding parameters
    • Alarm management (yarn break, package diameter)
    • Meter counter/doffing signal
    • Central machine control by HMI II with 5,7" touchscreen
    • Pneumatic mandrel
    • Pneumatic yarn tension control
    • Semi-automatic threading via automatically pivoting traverse unit
    • Option as edge trim winder
    • Option as start-up winder
  • Technical data
    Titer
    150 to 20000 dtex*
    Winding speed
    Max. 800 m/min
    Traverse length
    300, 400, 450 or 500 mm*
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    90, 94, 135 or 140 mm*
    Tube length
    230, 290 or 330 mm*
    Package diameter
    Max. 500 mm
    Winding ratio
    Electronic
    Package weight
    50 kg
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
SAHM 240XE
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type SAHM 240XE HPF

SAHM 240XE

Precision Cross Winder
Titer
180 to 3000 dtex
(in a special version up to 12000 dtex)
Winding speed
Max. 350 m/min
Traverse length
250 or 300 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 240XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Quick and efficient product changes
    • Electronic input of all winding parameters
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    180 to 3000 dtex
    (in a special version up to 12000 dtex)
    Winding speed
    Max. 350 m/min
    Traverse length
    250 or 300 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Tube inside diameter
    82.55 or 94 mm
    Tube length
    290 or 330 mm
    Package diameter
    Max. 320 mm
    Winding ratio
    Electronic
    Yarn tension
    30 to 230 cN
    50 to 750 cN
    100 to 1200 cN
    Winding volume with a traverse length of
    250 mm: Max. approx. 18.7 dm3
    300 mm: Max. approx. 22.4 dm3
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
SAHM 260XE
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type SAHM 260XE HPF

SAHM 260XE

Precision Cross Winder
Titer
150 to 2500 dtex
1000 to 15000 dtex
(in a special version up to 36000 dtex)
Winding speed
Max. 500 m/min
Traverse length
250, 300 or 400 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 260XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quaility
    • Reproducible yarn package formation
    • Quick and efficient product changes
    • Electronic input of all winding parameters
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    150 to 2500 dtex
    1000 to 15000 dtex
    (in a special version up to 36000 dtex)
    Winding speed
    Max. 500 m/min
    Traverse length
    250, 300 or 400 mm
    Drive
    Frequency-controlled
    Frame
    1-, 2- or 3-tier
    Tube inside diameter
    76.2; 82.55; 90 or 94 mm
    Tube length
    290, 330 or 440 mm
    Package diameter
    Max. 320 mm (optional up to 450 mm)
    Winding ratio
    Electronic
    Yarn tension
    50 to 750 cN
    100 to 1200 cN
    Winding volume with a traverse length of
    250 mm: Max. approx. 18.7 dm3
    300 mm: Max. approx. 22.4 dm3
    400 mm: Max. approx. 29.5 dm3
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
SAHM 700XE
Parallel Winder

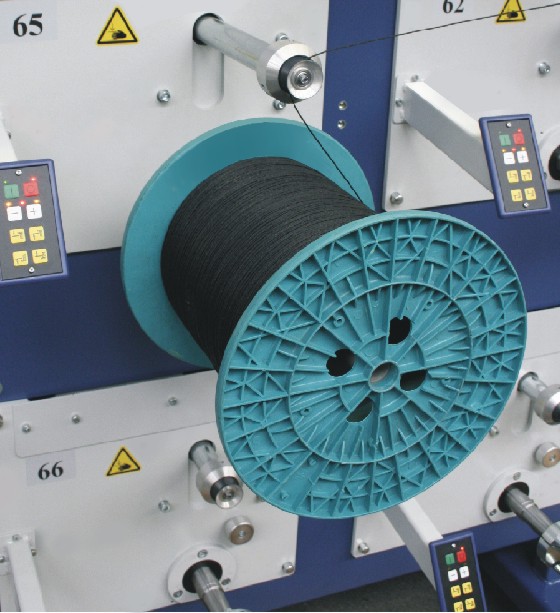

Winding head of a SAHM Parallel Winder, type SAHM 700XE HPF

SAHM 700XE

Parallel Winder
Titer
1100 to 30000 dtex
Winding speed
Max. 300 m/min
Traverse length
Max. 265 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 700XE
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Electronic input of all winding parameters
    • Quick and efficient product changes
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    1100 to 30000 dtex
    Winding speed
    Max. 300 m/min
    Traverse length
    Max. 265 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Package diameter
    Max. 355 mm
    Yarn tension
    100 to 1000 cN
    Tubes
    K200, K250 or K355*
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
SAHM 750XE
Automatic Parallel Winder
Automatic Parallel Winder, type SAHM 750XE HPF

SAHM 750XE

Automatic Parallel Winder
Titer
200 to 8000 dtex
Winding speed
Max. 400 m/min
Traverse length
Max. 285 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 750XE
  • Applications
    • High performance fibers
    • Technical yarns
    • Artificial grass yarn
    • Monofilaments
  • Advantages
    • Excellent package quality
    • Metered yarn length
    • Zero waste in production
    • Quick and efficient product changes
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    200 to 8000 dtex
    Winding speed
    Max. 400 m/min
    Traverse length
    Max. 285 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Package diameter
    Max. 355 mm
    Yarn tension
    20 to 1500 cN
    Tubes
    K200, K250 or K355*
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Technical yarns
  • Artificial grass yarn
  • Monofilaments
Gallery
SAHM 410E
Parallel Winder
Winding head of a SAHM Parallel Winder, type SAHM 410E HPF

SAHM 410E

Parallel Winder
Titer
1100 to 40000 dtex
Winding speed
Max. 350 m/min
Traverse length
Max. 300 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 410E
  • Applications
    • High performance fibers
    • Multifilaments
    • Coated or twisted yarns
  • Advantages
    • Excellent package quality
    • Reproducible yarn package formation
    • Electronic input of all winding parameters
    • Quick and efficient product changes
    • Highest flexibility and wide range of applications
  • Technical data
    Titer
    1100 to 40000 dtex
    Winding speed
    Max. 350 m/min
    Traverse length
    Max. 300 mm
    Drive
    Frequency-controlled
    Frame
    3-tier
    Package diameter
    Max. 355 mm
    Yarn tension
    100 to 1250 cN
    Tubes
    K200, K250 or K355*
    Winding ratio
    Electronic
    *others on request.
    Combination of all maximum values is not possible
  • High performance fibers
  • Multifilaments
  • Coated or twisted yarns
Brochure
Gallery
BITENSOR 910E
Unrolling Unit
SAHM Unrolling Unit, type BITENSOR 910E

BITENSOR 910E

Unrolling Unit
Titer
250 to 8000 dtex
Unrolling speed
70 to 200 m/min
Traverse length of unrolling packages
Max. 300 mm
*others on request.
Combination of all maximum values is not possible
More
BITENSOR 910E
  • Applications

    The SAHM BITENSOR is a tension-controlled bi-directional unrolling unit.

    It is used for applications such as filament winding and other processes.

    The BITENSOR is ideal for unrolling products into extruding, laminating, pultrusion, dipping and finishing processes.

  • Advantages
    • High flexibility and a wide range of applications, especially for delicate material
    • Minimum operating and monitoring expenditure
    • Alarm management (yarn break, yarn length, package diameter)
    • Bi-directional drive technology (forward & reverse direction)
  • Technical data
    Titer
    250 to 8000 dtex
    Unrolling speed
    70 to 200 m/min
    Traverse length of unrolling packages
    Max. 300 mm
    Drive
    Frequency-controlled
    Frame
    3-tier = 9 unrolling units
    Yarn tension
    50 to 400 cN
    Weight of unrolling packages
    Max. 12 kg
    Tube inside diameter of unrolling packages
    75 to 94 mm
    Package diameter of unrolling packages
    Max. 320 mm
    *others on request.
    Combination of all maximum values is not possible

The SAHM BITENSOR is a tension-controlled bi-directional unrolling unit.

It is used for applications such as filament winding and other processes.

The BITENSOR is ideal for unrolling products into extruding, laminating, pultrusion, dipping and finishing processes.

Gallery
75 years innovative winding technology
Contact
