CARBON FIBERS/COMPOSITES

Made with SAHM Winding Technology.

[Translate to 03 - Chinesisch:] Formula 1 raceing car - parts of it are made out of Carbon Fibers.
Carbon Fiber applications

Solutions for Carbon Fiber

Auto racing can no longer do without the miracle material, carbon: The monocoque alone of a Formula 1 racing car is made from approximately 1500 carbon fiber sheets. Carbon is - stronger than steel, but about five times lighter: That makes for speed and saves fuel. But carbon has also found its way into many other applications we encounter daily: Airplane components, walking sticks, fishing rods, bicycles and many other items are made from this material.



Usually between 1,000 and 20,000 fibers are processed to form the yarn. The statement "Made with SAHM Winding Technology“ comes with our promise that your carbon fibers will be wound with the highest possible precision for a positive impact on the quality of the final material.

dreieck
Fully Automatic Rewinding Machine for precision cross-wound packages

SAHM 872XE

Fully Automatic Rewinding Machine for precision cross-wound packages

SAHM 872XE

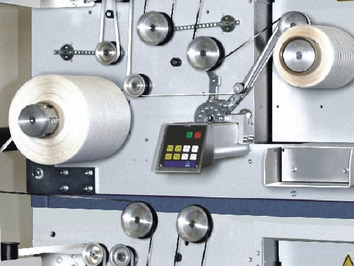

The automatic precision rewinding machine SAHM 872XE is equipped with an unwinding station, an automatic take-up winder and an easy storage doffing system (ESD) for bobbin handling.



Jumbo Winders for PAN Precursor Yarns

SAHM 830XE & 840XE

Jumbo Winders for PAN Precursor Yarns

SAHM 830XE & 840XE

The Jumbo Winders offer modular design for heavy-weight PAN bobbins.

SAHM T1 RackWinder
One-Ton System Winder
SAHM T1 RackWinder for wet spinning and air-gap spinning

SAHM T1 RackWinder

One-Ton System Winder
Winding technology
Precision cross winding
Drive
Frequency inverter-controlled
Frame
1-tier
*others on request.
Combination of all maximum values is not possible
More
SAHM T1 RackWinder
  • Applications
    • Wet spinning and air-gap spinning
    • PAN Precursor yarns
  • Advantages
    • Fast changeovers
    • Easy shipping of T1 MultiRacks
    • Quality Control Management with NFC tags
    • Flexible winding concept
  • Technical data
    Winding technology
    Precision cross winding
    Drive
    Frequency inverter-controlled
    Frame
    1-tier
    Titer
    12 to 60 K (others on request)
    Winding speed
    Up to 150 m/min for wet spinning, up to 600 m/min for air-gap spinning (others on request), 0 to 20 m/min for unwinding
    Winding ratio
    Electronic
    Traverse length
    Max. 900 mm
    Package diameter
    Max. 1,500 mm
    Start diameter
    600 mm
    Package weight
    Max. 1.2 ton (depends on density)
    Rack dimensions
    H x L x W: 1,700 mm x 1,700 mm x 1,150 mm
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Electronically controlled winding ratio
    • Central process control unit for input, display and storage of process and machine parameters
    • A/C motor-driven and tension-controlled winding and unwinding on creel side
    • Easy thread up function with catch and cut function
    • Pneumatic doffing system for T1 MultiRack during changeover
  • Options
    • Special traverse system for two selectable traverse widths for rack winding and for tube winding (between 900 mm and 750 mm)
    • Automatic robot system for handling racks on winding, storage and on creel side
  • Wet spinning and air-gap spinning
  • PAN Precursor yarns
SAHM 880XE
Precision Cross Winder
Winding head of a SAHM Precision Cross Winder, type SAHM 880XE

SAHM 880XE

Precision Cross Winder
Titer
1 to 60 K*
Winding speed
1 to 15 m/min
Traverse length
Max. 250 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 880XE
  • Applications
    • Carbon fibers
    • Specific towpregs
  • Advantages
    • Excellent package quality
    • Quick and efficient product changes
    • Electronic input of all winding parameters
    • Compact and modular design
    • Reproducible yarn package formation
  • Technical data
    Titer
    1 to 60 K*
    Winding speed
    1 to 15 m/min
    Traverse length
    Max. 250 mm
    Drive
    Frequency-controlled
    Frame
    4-tier
    Tube inside diameter
    76.2 mm
    Tube length
    280/290 mm
    Winding ratio
    Electronic
    Yarn tension
    Electronically adjustable
    Package diameter
    Max. 250 mm
    Winding technology
    Precision cross winding
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Electronically controlled and infinitely variable winding ratio
    • Central Process Control Unit (HMI 12" touch screen) for input, display and storage of process and machine parameters
    • Possible speed synchronization with the preceeding process
    • Doffing timer function
    • Advanced tension control with strain gauge system (yarn guide roller with implemented tension sensor)
  • Options
    • Pneumatic mandrel
    • Variable traverse lengths
    • HMI 15" touch screen with high capacity processor für SQL database
    • Label printing system
  • Carbon fibers
  • Specific towpregs
CarbonStar II - standard
Automatic Precision Cross Winder
Winding head of an automatic Precision Cross Winder, type CarbonStar II standard

CarbonStar II - standard

Automatic Precision Cross Winder
Titer
3 to 60 K*
Winding speed
2 to 15 m/min
Traverse length
Max. 250 mm
*others on request.
Combination of all maximum values is not possible
More
CarbonStar II - standard
  • Applications
    • Carbon Fibers
    • Specific Towpregs
  • Advantages
    • Quick and efficient product changes
    • Zero production waste - no downtime during bobbin changeover
    • Metered yarn length
    • Bobbin changeover reliability of 99.8 %
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Minimum yarn tail after automatic changeover
  • Technical data
    Titer
    3 to 60 K*
    Winding speed
    2 to 15 m/min
    Traverse length
    Max. 250 mm
    Frame
    3-tier
    Tube inside diameter
    76.2 mm
    Tube length
    280 mm
    Winding ratio
    Electronic
    Package weight
    Up to 12 kg
    Yarn tension
    Electronically adjustable
    Package diameter
    Max. 250 mm
    Winding technology
    Precision cross winding
    Bobbin mandrel
    Pneumatical
    Parking position with push off device
    Not included (option available)
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Automatic bobbin changeover on reaching one of the following criteria: yarn length, winding time, package weight, package diameter or external signal
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Electronically controlled winding ratio
    • Central process control unit (HMI touch screen) for input, display and storage of process and machine parameters
    • Tube inside diameter (76.2 mm) tolerance + 0.5 mm possible
  • Options
    • Variable traverse lengths
    • HMI touch screen with high capacity processor for SQL database
    • Interface to DCS
    • Adaptable to an automatic bobbin handling system
    • Frame unit with 6 heads
    • Label printing system
  • Carbon Fibers
  • Specific Towpregs
CarbonStar II - big
Automatic Precision Cross Winder
Winding head of an automatic Precision Cross Winder, type CarbonStar II big

CarbonStar II - big

Automatic Precision Cross Winder
Titer
12 to 60 K*
Winding speed
2 to 15 m/min
Traverse length
Max. 250 mm
*others on request.
Combination of all maximum values is not possible
More
CarbonStar II - big
  • Applications
    • Carbon Fibers
    • Specific Towpregs
  • Advantages
    • Quick and efficient product changes
    • Zero production waste - no downtime during bobbin changeover
    • Metered yarn length
    • Bobbin changeover reliability of 99.8 %
    • Highest operating safety - yarn is caught and cut at rear of bobbin
    • Minimum yarn tail after automatic changeover
  • Technical data
    Titer
    12 to 60 K*
    Winding speed
    2 to 15 m/min
    Traverse length
    Max. 250 mm
    Frame
    3-tier
    Tube inside diameter
    76.2 mm
    Tube length
    280 mm
    Winding ratio
    Electronic
    Package weight
    Up to 20 kg
    Yarn tension
    Electronically adjustable
    Package diameter
    Max. 320 mm
    Winding technology
    Precision cross winding
    Bobbin mandrel
    Pneumatical
    Parking position with push off device
    Included
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Automatic bobbin changeover on reaching one of the following criteria: yarn length, winding time, package weight, package diameter or external signal
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Electronically controlled winding ratio
    • Central process control unit (HMI touch screen) for input, display and storage of process and machine parameters
    • Tube inside diameter (76.2 mm) tolerance + 0.5 mm possible
  • Options
    • Variable traverse lengths
    • HMI touch screen with high capacity processor for SQL database
    • Interface to DCS
    • Adaptable to an automatic bobbin handling system
    • Frame unit with 6 heads
    • Label printing system
  • Carbon Fibers
  • Specific Towpregs
CarbonStar 2-cop
Automatic Precision Cross Winder
SAHM CarbonStar 2-cop - Automatic Precision Cross Winder

CarbonStar 2-cop

Automatic Precision Cross Winder
Titer
3 to 60 K*
Winding speed
2 to 20 m/min
Traverse length
2 x 250 mm
*others on request.
Combination of all maximum values is not possible
More
CarbonStar 2-cop
  • Applications
    • Carbon fibers
    • Specific towpregs
  • Advantages
    • Maximum efficiency by production of two bobbins (each up to 20 kg) on one winding head
    • Two exact length, high quality spools with our patented diameter control
    • Bobbin change-over reliability of 99.8 %
    • Highest operating safety due to automatic change-over
    • Energy savings from the latest drive technology
    • Minimum space requirement
    • Very low maintenance costs
    • Zero production waste - no downtime during bobbin changeover
    • Metered yarn length
  • Technical data
    Titer
    3 to 60 K*
    Winding speed
    2 to 20 m/min
    Traverse length
    2 x 250 mm
    Drive
    Frequency-controlled
    Frame
    1-, 2- or 3-tier
    Tube inside diameter
    76.2 mm
    Tube length
    280 mm
    Winding ratio
    Electronic
    Package weight
    Up to 20 kg each bobbin
    Yarn tension
    Electronically adjustable
    Package diameter
    Max. 320 mm
    Winding technology
    Precision cross winding
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Automatic bobbin changeover on reaching one of the following criteria: yarn length, winding time, package weight, package diameter or external signal
    • Quick and efficient product changes by electronic data input of all winding parameters
    • Electronically controlled winding ratio
    • Central process control unit (HMI 12" touch screen) for input, display and storage of process and machine parameters
    • Tube inside diameter (76.2 mm) tolerance + 0.5 mm possible
  • Options
    • HMI 15" touch screen with high capacity processor for SQL database
    • Interface to DCS
    • Frame unit with 9 heads
    • Label printing system
  • Carbon fibers
  • Specific towpregs
SAHM 810XE
Large Package Winder
Large Package Winder, type SAHM 810XE

SAHM 810XE

Large Package Winder
Titer
3 to 18 K*
Winding speed
50 to 150 m/min
70 to 400 m/min
Traverse length
500 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 810XE
  • Applications
    • PAN Precursor Fibers
  • Advantages
    • Excellent package quality and reproducible yarn package formation
    • Compact and modular design
    • Alarm management (yarn break, yarn length, package diameter)
    • Electronic input of all winding parameters
    • Pneumatic push-off device
  • Technical data
    Titer
    3 to 18 K*
    Winding speed
    50 to 150 m/min
    70 to 400 m/min
    Traverse length
    500 mm
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    144 mm*
    Tube length
    Max. 550 mm
    Winding ratio
    Electronic
    Package weight
    Max. 120 kg
    Package diameter
    Max. 600 mm
    *others on request.
    Combination of all maximum values is not possible
  • PAN Precursor Fibers
SAHM 832XE
Rewinding System for Jumbo Spools
SAHM 832XE - Rewinding System for Jumbo Spools

SAHM 832XE

Rewinding System for Jumbo Spools
Titer
3 to 60 K*
Winding speed
50 to 200 m/min
Traverse length
700, 750 or 800 mm
*others on request.
Combination of all maximum values is not possible
More
SAHM 832XE
  • Applications
    • PAN precursor yarns
  • Advantages

    The SAHM 832XE supports standardization of bobbins on the creel side through splicing of short bobbins into a single large standard size. This reduces waste and allows for longer periods of uninterrupted production for higher efficiency and throughput.

  • Technical data
    Titer
    3 to 60 K*
    Winding speed
    50 to 200 m/min
    Traverse length
    700, 750 or 800 mm
    Drive
    Frequency-controlled
    Frame
    1-tier
    Tube inside diameter
    133, 140 or 144 mm
    Tube length
    750, 800 or 850 mm
    Winding ratio
    Electronic
    Package weight
    Max. 350 kg (depending on density)
    Package diameter
    Max. 800 mm
    Winding technology
    Precision cross winding
    *others on request.
    Combination of all maximum values is not possible
  • Features
    • Electronically controlled and infinitely variable winding ratio
    • Central Process Control Unit for input, display and storage of process and machine parameters
    • Speed synchronization between unwinding and rewinding
    • Stop and start up function with variable package diameter before and after splicing (alternatively by yarn length or package weight)
    • A/C motor driven and tension-controlled unwinding
    • Unwinding speed adjustment via potentiometer
    • Freely programmable prewarning and target rewinding length
      - Automatic speed reduction when prewarning length is reached
      - Automatic stop when target length is reached
    • Godet roll for tension control between unwinding and rewinding
    • Pneumatic mandrels for unwinding and rewinding
    • Pneumatic doffer for rewinding position
  • Options
    • Hand-held suction device for doffing procedure
    • Hand-held splicing device for splicing of two bobbin ends
    • Special traverse system for two selectable traverse widths (either between 500 and 750 or 500 and 800 mm)
    • Spindles with ball bearings for easy doffing
  • PAN precursor yarns
SAHM 464XE
Parallel Winder with integrated tension-controlled unrolling unit
Detail photo of a SAHM Parallel Winder with integrated tension-controlled unrolling unit, type SAHM 464XE

SAHM 464XE

Parallel Winder with integrated tension-controlled unrolling unit
Winding speed
Max. 200 m/min
Traverse length
20 to 300 mm
Drive
Frequency-controlled
*others on request.
Combination of all maximum values is not possible
More
SAHM 464XE
  • Applications
    • Prepreg tapes
  • Advantages
    • Excellent package quality
    • Quick and efficient product changes
    • Highest flexibility and a wide range of applications
    • Direct tape placement onto the traversing spindle
    • Tension regulated precision placement of the release liner
  • Technical data
    Winding speed
    Max. 200 m/min
    Traverse length
    20 to 300 mm
    Drive
    Frequency-controlled
    Frame
    1- or 2-tier
    Tube inside diameter
    76.2 mm
    Winding ratio
    Electronic
    Material width/diameter
    1 to 30 mm
    Bobbin types
    Cyclindrical, biconical, pancake, flanged
    Package diameter
    Max. 350 mm
    *others on request.
    Combination of all maximum values is not possible
  • Prepreg tapes
75 years innovative winding technology
Contact
